Wall-Mounted Valve-Fitted Emergency Shower (Hand-Operated) 15024000

Features

• Hand-operated (pull rod); fitted to the wall through its valve.
• Available in stainless steel, AISI 316 stainless steel and galvanised, painted steel.
• The shower head can be chosen in stainless steel, painted cold-rolled steel or ABS.
• Galvanised, painted models are green as standard (RAL 6029); other colours are available on request.

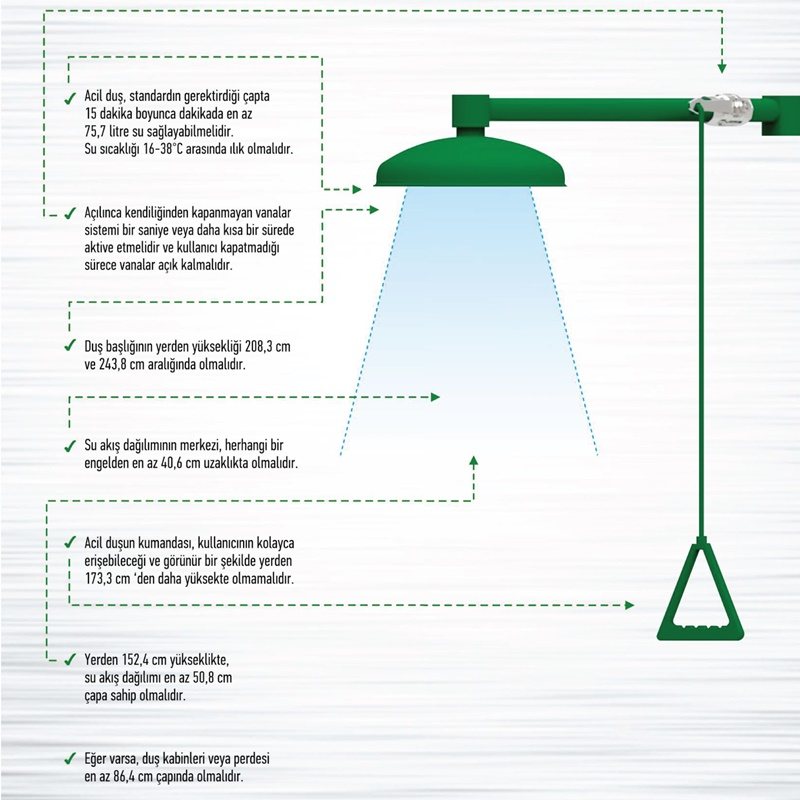

• Under the standards an emergency shower must deliver an uninterrupted flow of at least 75.7 l/min for 15 minutes; the unit meets this when connected to the mains water supply.
• The standard requires the water to be kept between 16 and 38 °C; a thermostatic mixer that blends hot and cold water to the right temperature can be added to the system.
• Available in explosion-proof (Ex) and non-Ex versions.

Specifications

Water inlet

1″

Body pipe

1″

Activation

Pull handle

Shower head diameter

300 mm

Water flow

At least 75.7 l/min (15 minutes)
