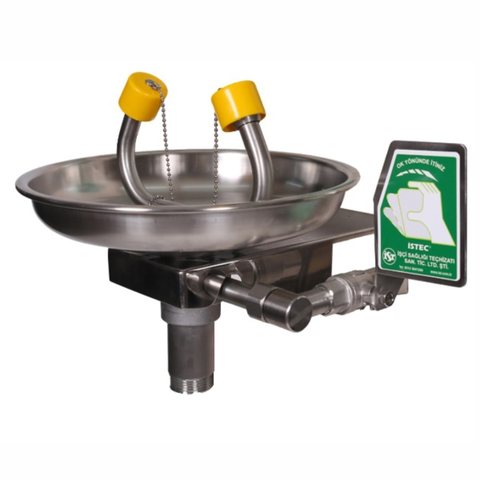

Wall-Mounted Emergency Eye/Face Wash on Bracket (Hand-Operated) 15011100-316

Features

• Hand-operated; fixed to the wall on a metal bracket.
• Available in stainless steel, AISI 316 stainless steel and galvanised, painted steel.
• The bowl can be chosen in stainless steel, galvanised and painted steel or ABS.
• Under the standards an eye/face wash must deliver an uninterrupted flow of at least 11.4 l/min for 15 minutes; the unit meets this when connected to the mains water supply.
• The standard requires the water to be kept between 16 and 38 °C; a thermostatic mixer that blends hot and cold water to the right temperature can be added to the system.
• Available in explosion-proof (Ex) and non-Ex versions.

Specifications

Water inlet

1/2″

Body pipe

1 1/4″

Water outlet

1 1/4″

Activation

Hand-operated

Bowl diameter

300 mm

Water flow

At least 11.4 l/min (15 minutes)
