Wall-Mounted Combination Emergency Shower (Separately Hand-Operated) 15034000

Features

• The eye/face wash and the body shower are each hand-operated.
• Fixed to the wall by its body pipes.
• The bowl can be chosen in stainless steel or ABS.

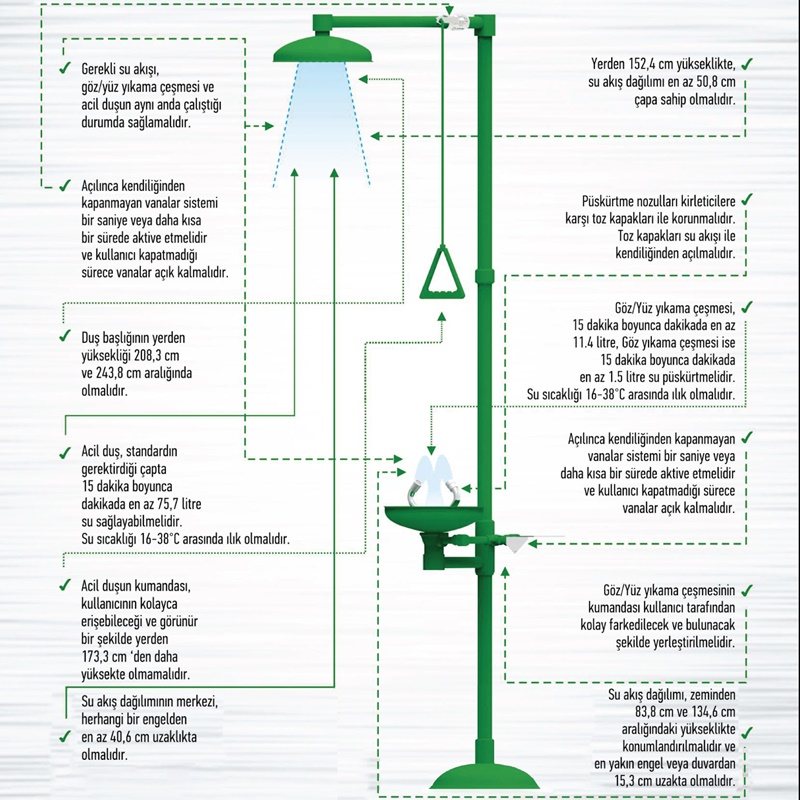

• Under the standards, for 15 minutes the emergency shower must deliver at least 75.7 l/min and the eye/face wash at least 11.4 l/min without interruption; the unit meets this when connected to the mains water supply.
• The standard requires the water to be kept between 16 and 38 °C; a thermostatic mixer that blends hot and cold water to the right temperature can be added to the system.
• Available in explosion-proof (Ex) and non-Ex versions.

Specifications

Water inlet

1″

Body pipe

1 1/4″

Activation

Body shower: pull handle; eye wash: hand control

Shower head diameter

300 mm

Water flow (body shower)

At least 75.7 l/min (15 minutes)

Water flow (eye/face wash)

At least 11.4 l/min (15 minutes)
