Ventilated Two-Compartment Storage Cabinet

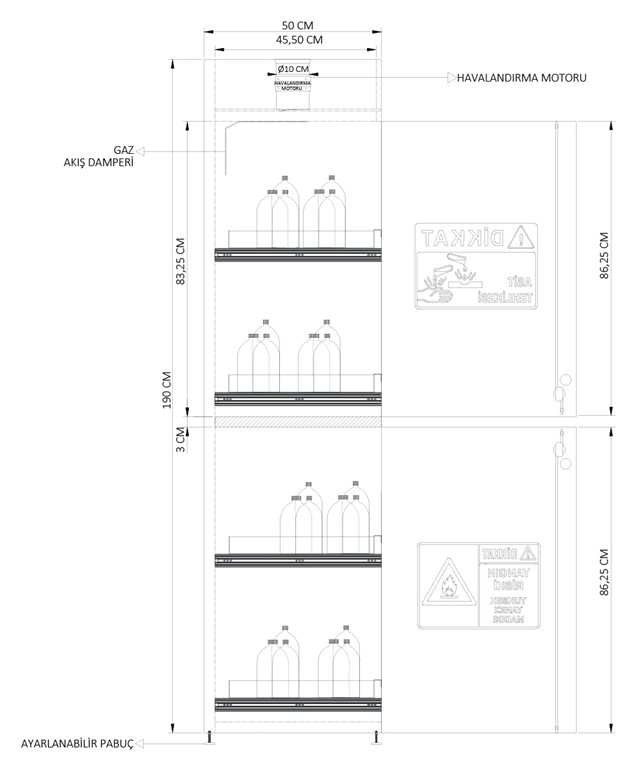

Ventilated Two-Compartment Storage Cabinet HMD-2MK 6019

Chemicals and solvents in the laboratory release toxic gases over time, even in closed containers. Laboratory standards and occupational safety require such chemicals to be stored in special cabinets

Width
60 cm
Depth
45 cm
Height
190 cm
Cabinet height (cm)
190
Number of shelves
4
Request a Quote Call Now Get a Quote on WhatsApp
Stock Code:
HMD-2MK 6019
Category:
Single-Walled Ventilated Cabinets
Standards:
EN 14727, ISO 3864, CE, TS EN 14175, ISO 12100, EN 953

Features

  • Demountable system
  • Main body: steel with electrostatic epoxy powder coating after pre-treatment
  • Interior: steel with electrostatic epoxy powder coating after pre-treatment.
  • 100 mm ventilation outlet for connecting the cabinet’s internal ventilation.
  • Leak-tight seal system, leak-tight shelf system on telescopic runners, optional tempered glass front panel
  • Lockable door system marked in accordance with ISO 3864, colour RAL 7035 (light grey) or RAL 1004 (yellow). Plays an important role in work with chemicals and in microbiological laboratories.
  • Correct storage and handling of chemicals greatly reduces chemical risk.
  • Storage standards require fire control, temperature, ventilation, segregation and labelling to be specified.
  • Minimises the flammability, toxicity and environmental pollution risks of each chemical when storing hazardous chemicals.
  • Chemical storage safety cabinets provide an effective solution for working with hazardous chemicals in laboratories and workshops.

Specifications

W × D × H (cm)
60 × 45 × 160–220
Paint properties
After the metal parts have been cleaned in special solvents, they are coated with epoxy electrostatic powder and cured at 200 °C.
Cabinet feet
Chemical-resistant screw feet that compensate for floor slopes
Cabinet depth (cm)
45
Cabinet width (cm)
60
Fan airflow (m³/h)
110 / 300
Noise level
20 / 40 dB
Power rating
220 Volt / 50 Hz
Construction
Galvanised steel sheet
Standard and quality certificate
ISO 12100 - EN 953+A1 CLASS I / CE / ISO 9001:2015 / TS EN 14175
Top control panel
Illuminated on-off switch – power pilot lamp
