Under-Fume-Hood Chemical Storage Cabinet

Under-Fume-Hood Chemical Storage Cabinet CYD-5K 2760

Chemicals and solvents in the laboratory release toxic gases over time, even in closed containers. Laboratory standards and occupational safety require such chemicals to be stored in special cabinets

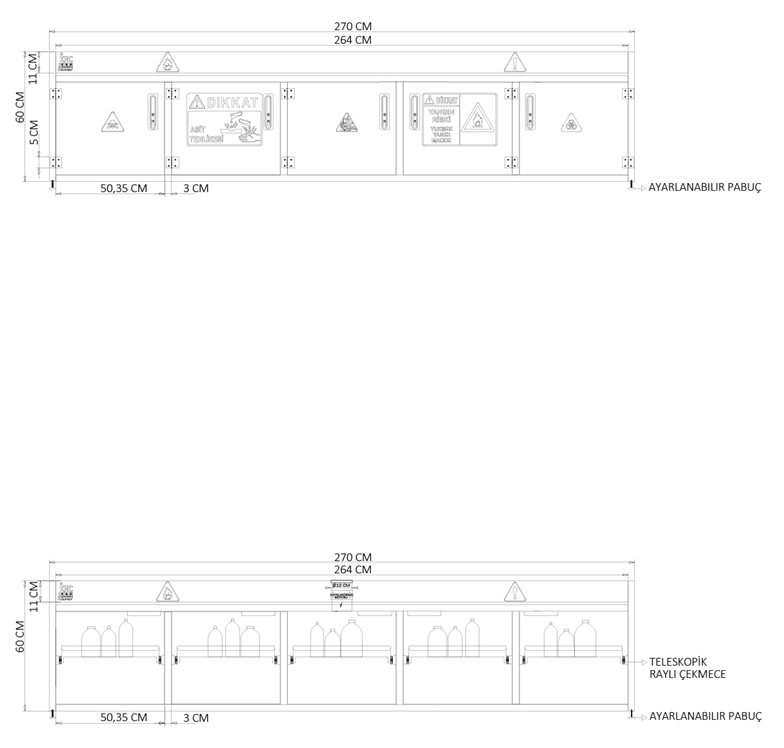

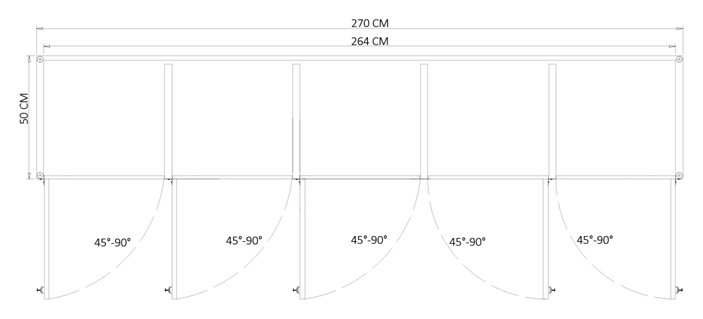

Width
270 cm
Depth
50 cm
Height
60 cm
Cabinet width (cm)
270
Cabinet height (cm)
60
Number of shelves
1
Request a Quote Call Now Get a Quote on WhatsApp
Stock Code:
CYD-5K 2760
Category:
Under-Bench & Under-Hood Chemical Cabinets
Standards:
EN 14727, ISO 3864, CE, TS EN 14175, ISO 12100, EN 953

Features

  • Demountable system
  • Main body: steel with electrostatic epoxy powder coating after pre-treatment
  • Interior: steel with electrostatic epoxy powder coating after pre-treatment.
  • 100 mm ventilation outlet for connecting the cabinet’s internal ventilation.
  • Leak-tight seal system, leak-tight shelf system on telescopic runners
  • Fire-resistant
  • Lockable door system marked in accordance with ISO 3864, colour RAL 7035 (light grey) or RAL 1004 (yellow). Plays an important role in work with chemicals and in microbiological laboratories.
  • Correct storage and handling of chemicals greatly reduces chemical risk.
  • Storage standards require fire control, temperature, ventilation, segregation and labelling to be specified.
  • Minimises the flammability, toxicity and environmental pollution risks of each chemical when storing hazardous chemicals.
  • Chemical storage safety cabinets provide an effective solution for working with hazardous chemicals in laboratories and workshops.

Specifications

W × D × H (cm)
60–270 × 50 × 60–80
Paint properties
After the metal parts have been cleaned in special solvents, they are coated with epoxy electrostatic powder and cured at 200 °C.
Other
A ventilation motor and diffuser can be added on request.
Cabinet feet
Chemical-resistant screw feet that compensate for floor slopes
Cabinet depth (cm)
50
Construction
DKP - galvanised steel sheet
Standard and quality certificate
ISO 12100 - EN 953+A1 CLASS I / CE / ISO 9001:2015 / TS EN 14175
Top control panel
Illuminated on-off switch – power pilot lamp

Other Sizes
