Laboratory Fittings (Taps & Valves)

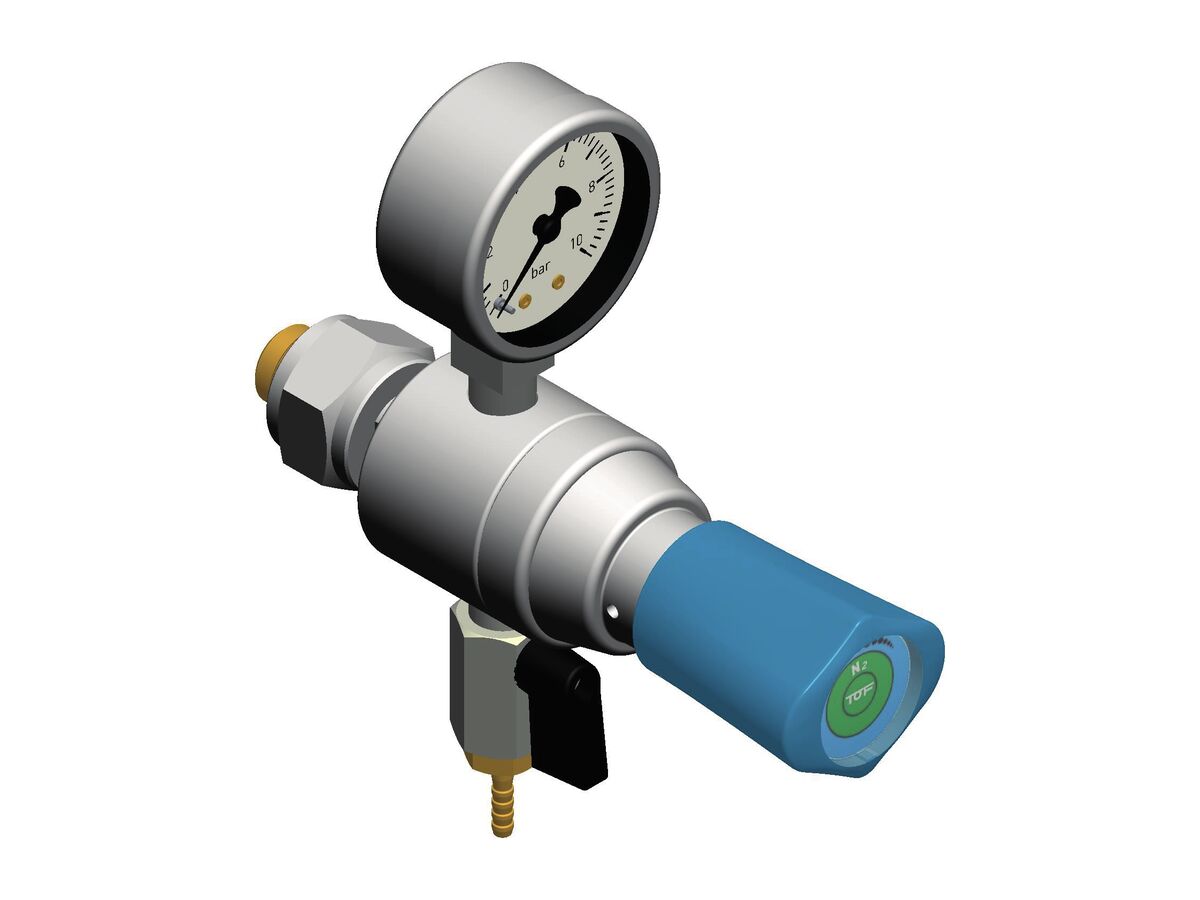

Laboratory Fitting 3100-190
Laboratory fitting with G1/2", G3/8" threads and an inlet pressure of up to 20 bar and an outlet pressure of 0.1–10 bar; colour-coded to DIN EN 13792
- Stock Code:
- 3100-190
- Category:
- Laboratory Fittings (Taps & Valves)
- Standards:
- EN ISO 228, DIN EN 13792, DIN 12918, DIN 12920
Features
- Fixing and connection threads to UNI EN ISO 228/1
- Colour coding to DIN EN 13792
- Max. inlet pressure 20 bar / 290 psi
- Outlet pressure 0.1–10 bar / 1.45–145 psi
- Operating temperature -20 °C to +60 °C (-4 °F to +140 °F)
Specifications
- Thread sizes
- G1/2", G3/8"
- Max. inlet pressure
- 20 bar / 290 psi
- Outlet pressure
- 0.1–10 bar / 1.45–145 psi
- Operating temperature
- -20 °C to +60 °C (-4 °F to +140 °F)
