3100/136
GREY
Laboratory Fittings (Taps & Valves)

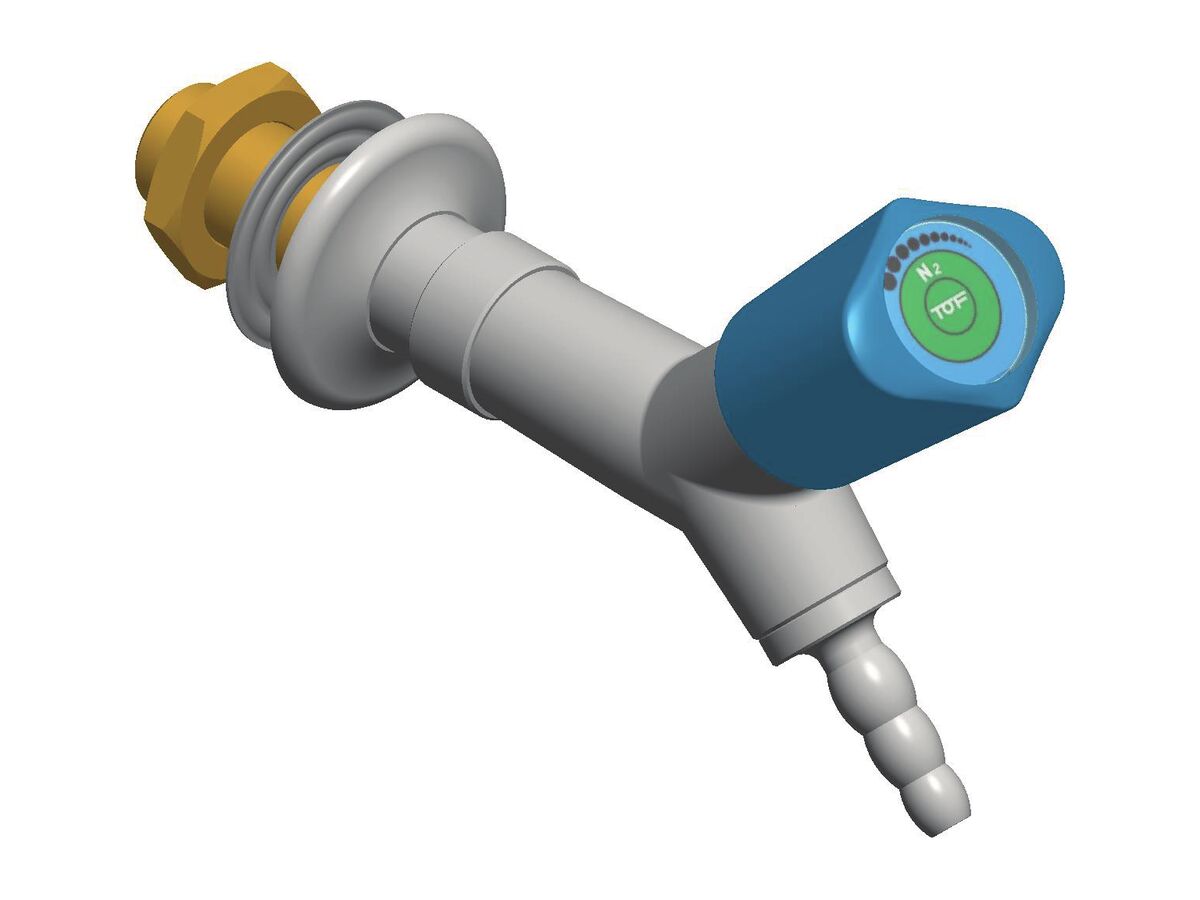

Laboratory Fitting 3100-136
Laboratory fitting with G1/2" threads, an outlet nozzle to DIN 12898 and a maximum working pressure of 10 bar; colour-coded to DIN EN 13792.
- Category:
- Laboratory Fittings (Taps & Valves)
- Standards:
- EN ISO 228, DIN 12898, DIN EN 13792, DIN 12918, DIN 12920
Laboratory Fitting 3100-136 Models
-
3100/136-B
WHITE
Features
- Fixing and connection threads to UNI EN ISO 228/1
- Outlet nozzle to DIN 12898
- Colour coding to DIN EN 13792
- Max. working pressure 10 bar / 145 psi
Specifications
- Thread sizes
- G1/2"
- Mounting hole (min.)
- Ø22 mm
- Max. working pressure
- 10 bar / 145 psi
