3100/15Y
R3/8" / UNI ISO 7/1 / GREY / ON REQUEST

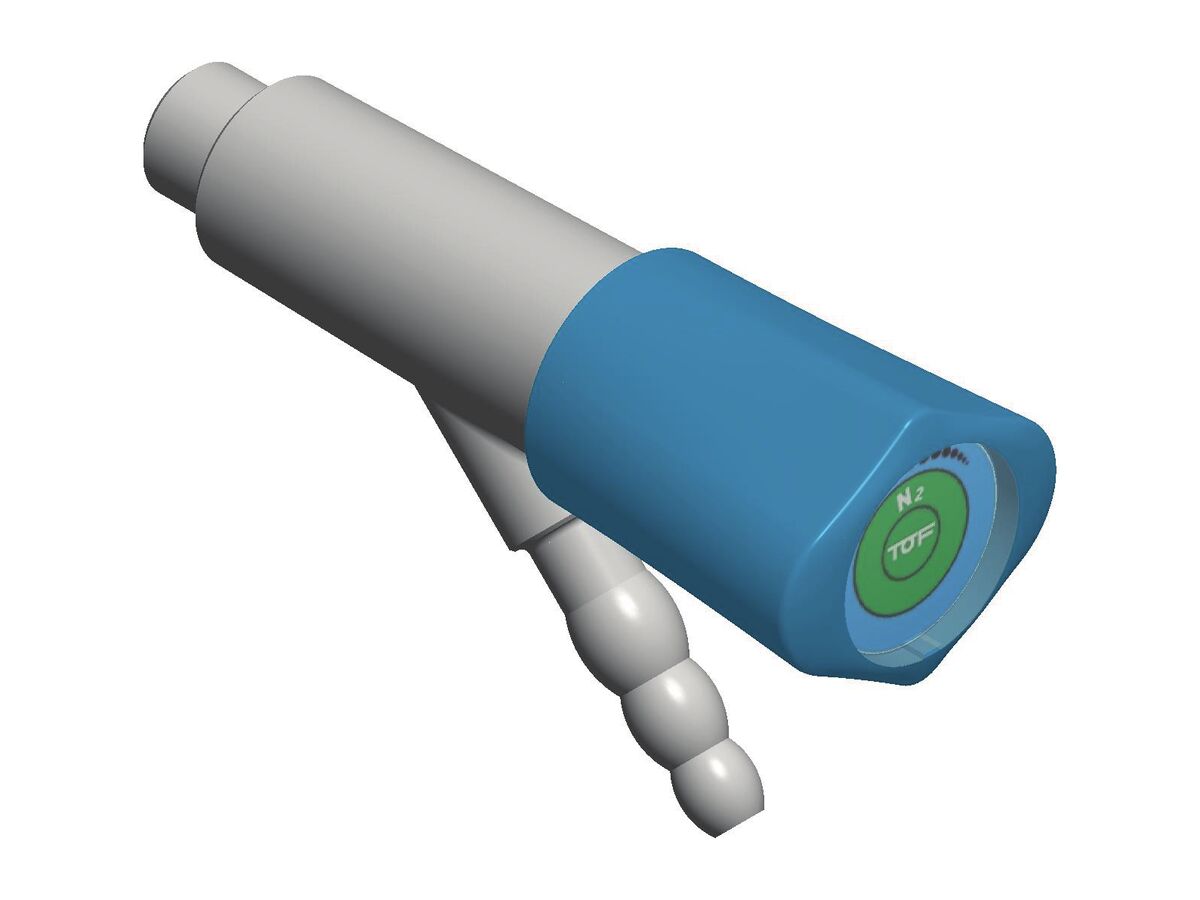

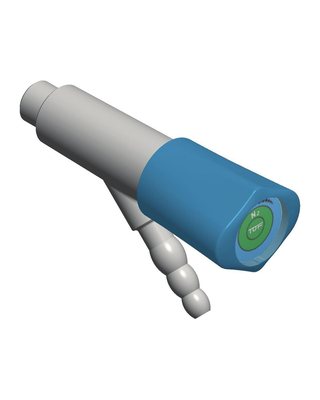

Laboratory Fitting 3100-015 3100/15
Laboratory fitting with G3/8" (standard) or R3/8" (on request) threads, an outlet nozzle to DIN 12898 and a maximum working pressure of 10 bar; colour-coded to DIN EN 13792
- Stock Code:
- 3100/15
- Category:
- Laboratory Fittings (Taps & Valves)
- Standards:
- DIN EN 13792, DIN 12898, EN ISO 228/1, DIN 12918, DIN 12920
Features
- Fixing and connection threads to UNI EN ISO 228/1 or UNI ISO 7/1
- Outlet nozzle to DIN 12898
- Colour coding to DIN EN 13792
- Max. working pressure 10 bar / 145 psi
Specifications
- Connection thread
- G3/8" (standard), R3/8" (on request)
- Max. working pressure
- 10 bar / 145 psi
