2200/260Y
R3/8" / UNI ISO 7/1 / GREY / ON REQUEST

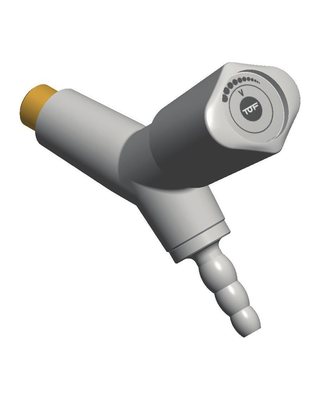

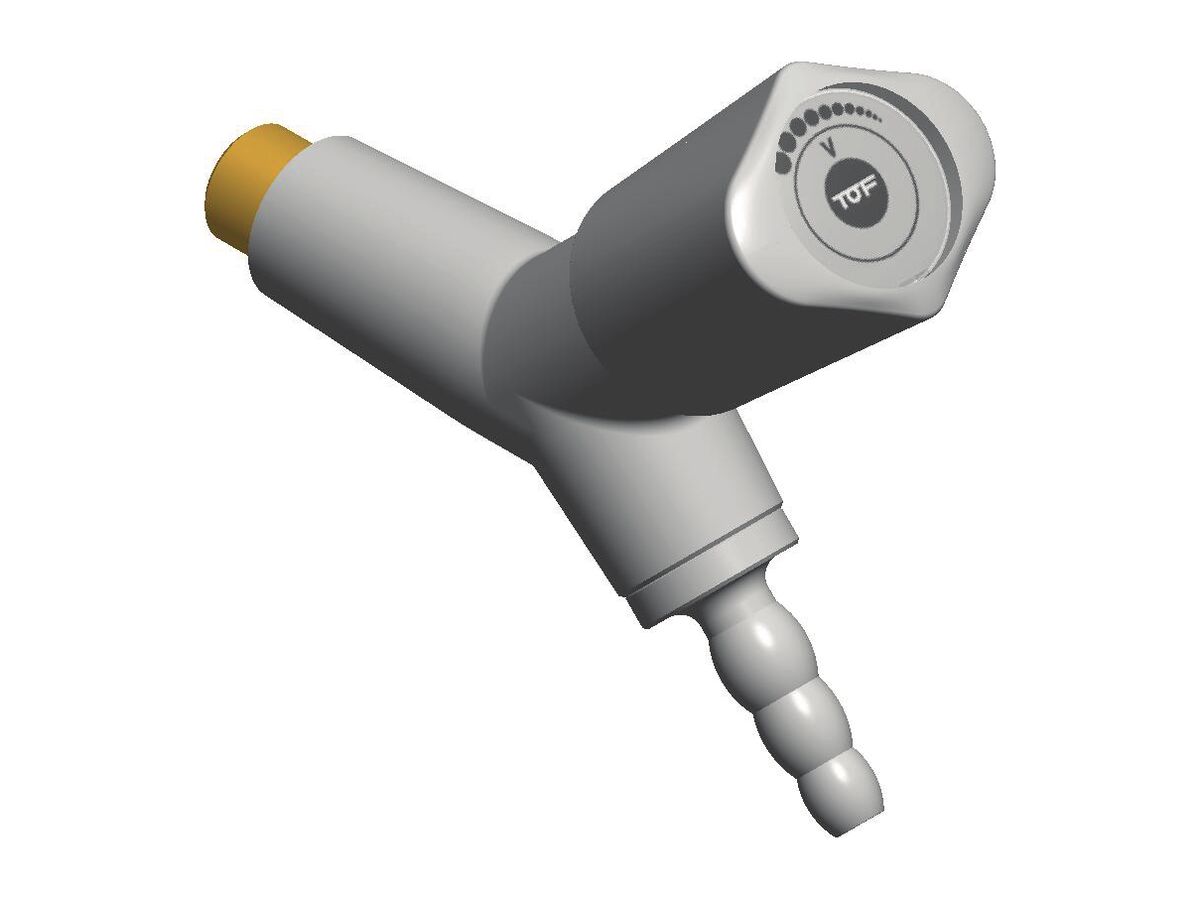

Laboratory Fitting 2200-260 2200/260
Laboratory fitting with G3/8" (standard) or R3/8" (on request) threads, an outlet nozzle to DIN 12898 and a working pressure of -1 to 10 bar; colour-coded to DIN EN 13792
- Stock Code:
- 2200/260
- Category:
- Laboratory Fittings (Taps & Valves)
- Standards:
- EN ISO 228, DIN 12898, DIN EN 13792, DIN 12918, DIN 12920
Features
- Fixing and connection threads to UNI EN ISO 228/1
- Outlet nozzle to DIN 12898
- Colour coding to DIN EN 13792
- Working pressure -1 bar to 10 bar (-14.5 psi to 145 psi)
Specifications
- Connection thread
- G3/8" (standard), R3/8" (on request)
- Working pressure
- -1 bar to 10 bar (-14.5 psi to 145 psi)
Other Sizes
-
2200/260-B
G3/8"A / UNI ISO 228/1 / WHITE / ON REQUEST
-
2200/260Y-B
R3/8" / UNI ISO 7/1 / WHITE / ON REQUEST
-
2200/260A
G3/8"A / UNI ISO 228/1 / BLACK / ON REQUEST
-
2200/260Y-A
R3/8" / UNI ISO 7/1 / BLACK / ON REQUEST
