2000/125-B
WHITE

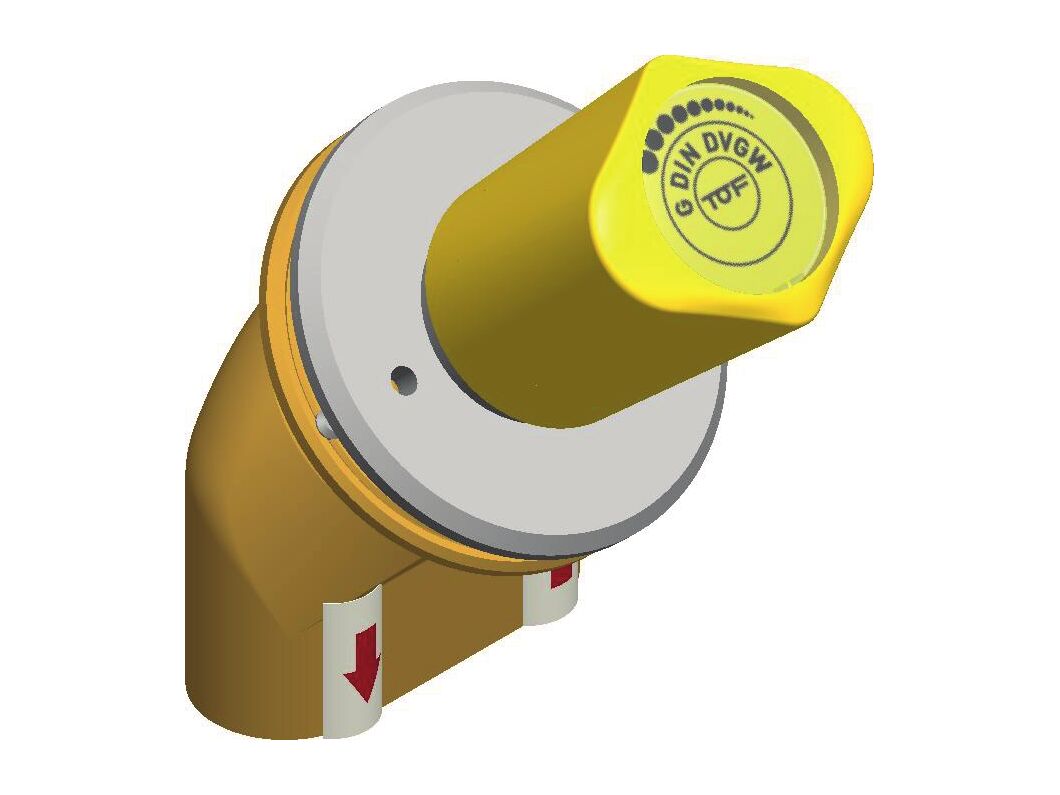

Laboratory Fitting 2000-125 2000/125
Laboratory fitting with M38×1.5, G3/8" threads and a maximum working pressure of 0.2 bar; colour-coded to DIN EN 13792
- Stock Code:
- 2000/125
- Category:
- Laboratory Fittings (Taps & Valves)
- Standards:
- EN ISO 228, DIN EN 13792, DIN 12918, DIN 12920
Features
- Fixing thread to UNI EN ISO 228/1
- Connection thread to UNI EN ISO 228/1 and ISO 262
- Colour coding to DIN EN 13792
- Max. working pressure 0.2 bar / 2.9 psi
- Push-and-turn safety valve head
Specifications
- Thread sizes
- M38×1.5, G3/8"
- Mounting hole (min.)
- Ø39 mm
- Max. working pressure
- 0.2 bar / 2.9 psi
