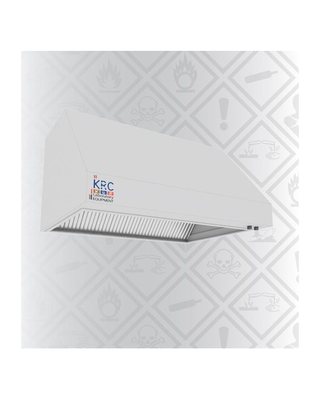

KDS 90
90 × 60 × 100 cm

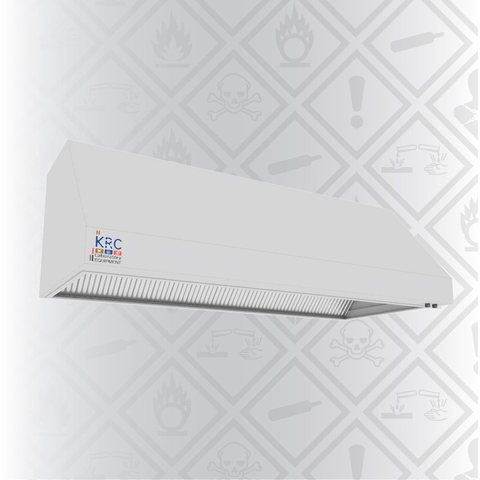

Laboratory Canopy Hood KDS 150
A canopy hood is an open system that locally extracts the heat, odours, water vapour and acid fumes released during tests and experiments, which in laboratories are usually carried out on the bench
- Width
- 150 cm
- Depth
- 60 cm
- Height
- 100 cm
- Working width (cm)
- 150
- Fan airflow (m³/h)
- 805
- Exhaust outlet diameter (cm)
- Ø20
- Stock Code:
- KDS 150
- Category:
- Laboratory Canopy Hoods
- Standards:
- EN 60034-1, TS EN 14175, ISO 12100, EN 953, CE
Features
- A canopy hood that can easily be mounted high above the worktop or over free-standing volatile work, and fixed to any type of wall.
- Construction: galvanised steel sheet | Stainless steel
- Paint finish: after the metal parts have been cleaned in special solvents, they are coated with epoxy electrostatic powder and cured at 200 °C.
- Fan 800 | 1000 | 1250 m³/h, standard EN 60034-1, protection rating IP44, steel body
- Fuse box: fuse system 16 Amp | 32 Amp
- Lighting: low-power, high-intensity LED lamp, 800 – 1200 lux
- Noise level max. 50 dB
- Power rating 220 Volt | 50 Hz
- Fan speed control; lighting control in compliance with EN 14175
- Controller for fan extraction speed settings
Specifications
- W × D × H (cm)
- 90–250 × 60 × 100
- Emergency button
- 0 / Rotary switch
- Lighting
- Low-power, high-intensity LED lamp, 800 – 1200 lux
- Paint properties
- After the metal parts have been cleaned in special solvents, they are coated with epoxy electrostatic powder and cured at 200 °C.
- Unit height (cm)
- 100
- Fan speed control
- Controller for lighting control and fan extraction speed settings in compliance with EN 14175
- General overview
- A canopy hood that can easily be mounted high above the worktop or over free-standing volatile work, and fixed to any type of wall.
- Noise level
- max. 50 dB
- Power rating
-
- 220 Volt
- 50 Hz
- Construction
-
- Galvanised steel sheet
- Stainless steel
- Fuse box
- Fuse system 16 Amp / 32 Amp
- Standard and quality certificate
- ISO 12100 - EN 953+A1 CLASS I / CE / ISO 9001:2015 / TS EN 14175
- Hood depth (cm)
- 60

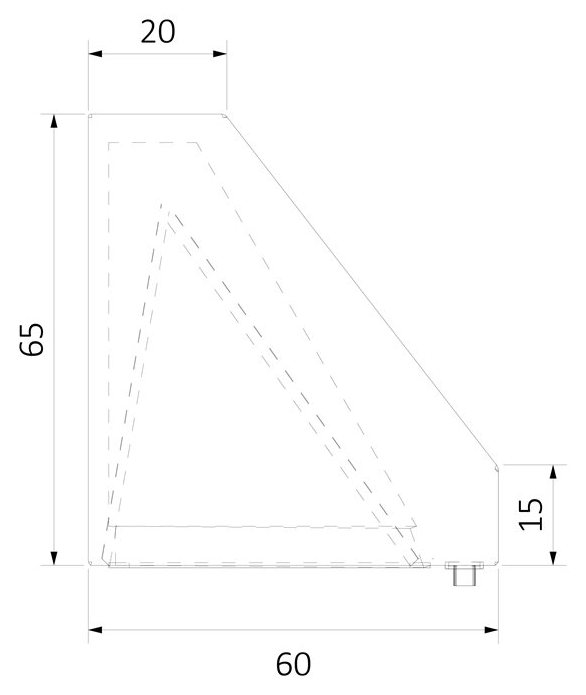

- Body height – drawing (cm)
- 65 (front face 15)
