Laboratory Base Cabinet AD-T1K8C

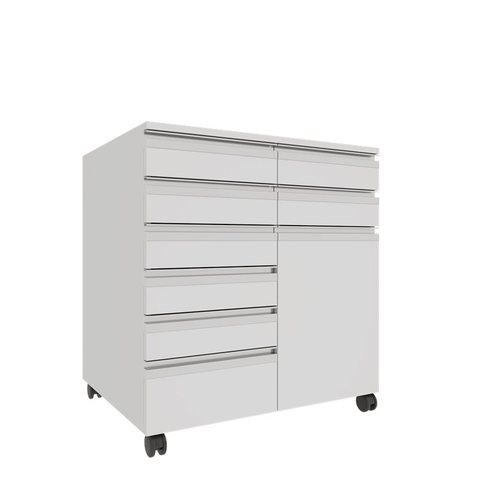

Laboratory Base Cabinet AD-T1K8C AD-T1K8C756075

Mobile under-bench base cabinet on castors with eight drawers in total and a single-door compartment

Width
75 cm
Depth
60 cm
Height
75 cm
Stock Code:
AD-T1K8C756075

Features

  • Base cabinet systems are lockable and are made either removable or mobile (on castors).
  • Cabinet doors are 18 mm MDF and all are fitted with door stops.
  • Doors are hung on standard-compliant hinges that open 90° and resist corrosion and heavy loads; epoxy-coated hinges are used where acid or acid fumes are present.
  • Doors and drawers are fully laminated with plastic seals, and the drawers have a self-closing mechanism.
  • Cabinet doors, shelves and all visible edges of the cabinet are chamfered and edged with plastic banding.
  • The door compartment has one height-adjustable shelf.
  • The metal parts of the cabinets withstand heavy loads and are finished with epoxy-based electrostatic paint.
  • For smooth, easy running, the drawers run on standard-compliant galvanised runners with a load capacity of at least 35 kg.
  • Drawer bodies, flaps and fronts are made of 18 mm melamine-faced MDF; drawer backs and bottoms are 8 mm melamine-faced MDF, fitted into routed grooves.
  • Drawer front edges are banded with 2 × 22 mm PVC in the same colour as the front, and the drawers are fitted with stops.
  • The cabinets have full-length, electrostatically painted aluminium handles that resist heavy loads and corrosion.

Specifications

Available widths (cm)
60, 75, 90
Depth (cm)
60
Carcass height (cm)
75
Height including castors (cm)
80
Front layout
6 drawers on the left; 2 drawers above 1 door on the right
Drawer heights (cm)
Left: 11, 11, 11, 11, 15, 15 · Right: 11, 11
Mobility
On castors (mobile)
