KTD-I 90
90 × 50 × 190 cm

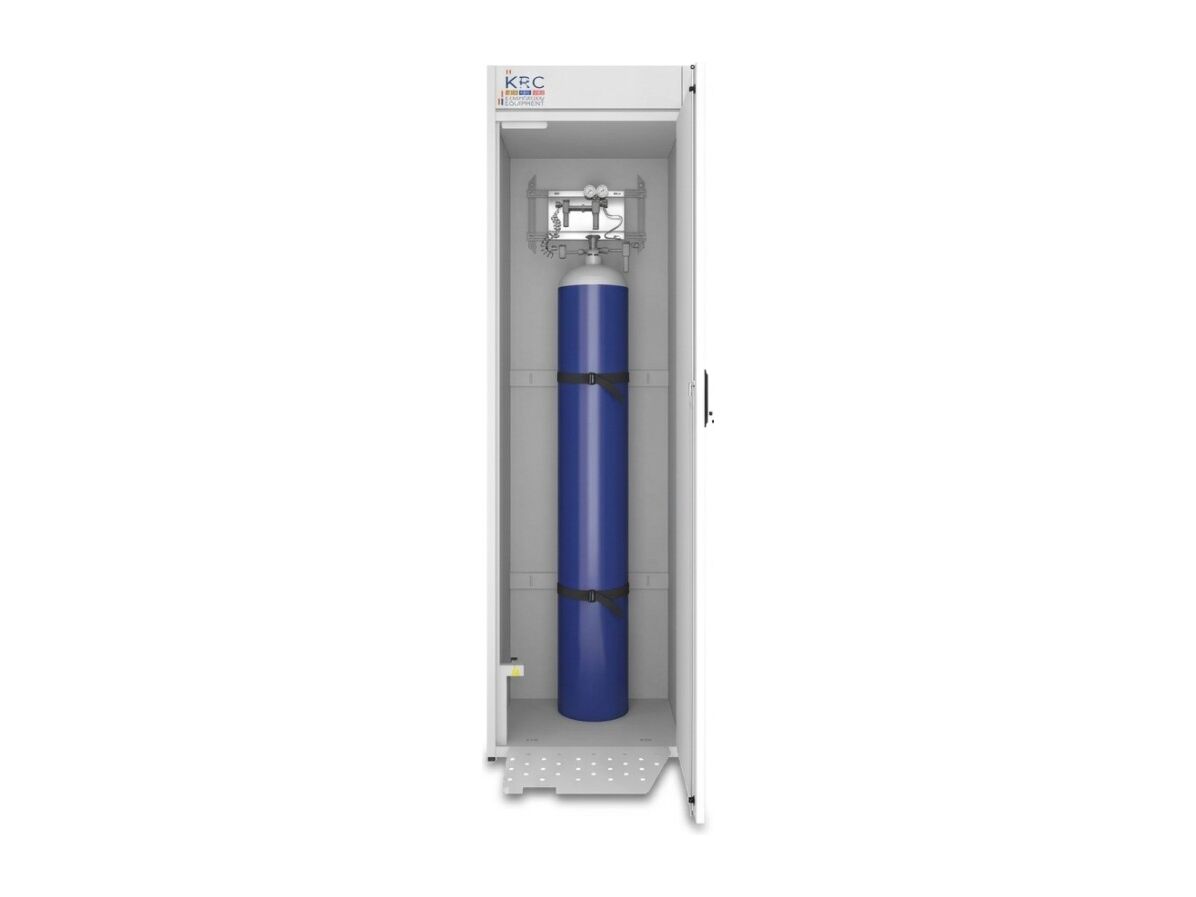

Indoor Gas Cylinder Cabinet KTD-I 60
A gas cylinder cabinet designed for storing pressurised gas cylinders inside laboratory rooms and manufactured to EN 14470. It stops cylinders from toppling over and, in a fire, protects them for the assumed response time, helping to prevent an explosion and the spread of the fire
- Width
- 60 cm
- Depth
- 50 cm
- Height
- 190 cm
- Noise level (dB)
- max. 45
- Internal storage width (cm)
- 60
- Stock Code:
- KTD-I 60
- Category:
- Indoor Gas Cylinder Cabinets
- Standards:
- EN 14470-2, CE
Features
- Industrial gas cylinder cabinets are made from 1.20 mm galvanised steel; all surfaces are coated with chemical-resistant electrostatic epoxy powder and oven-cured.
- The doors and side walls of gas cylinder cabinets are double-walled, with a special channel system between the walls for thermal insulation and air circulation.

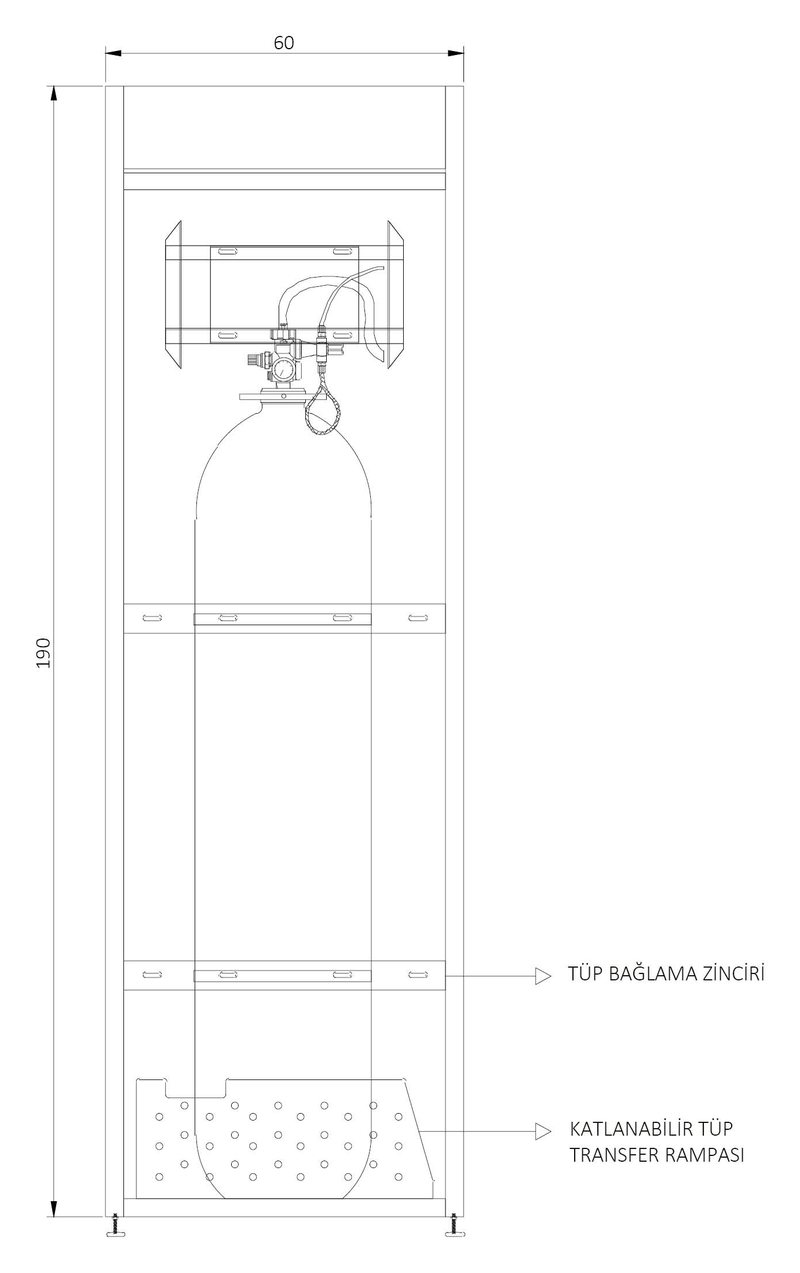

- A fold-down ramp at the base of the gas cylinder cabinet makes loading cylinders easier.
- On request, a duct-type polypropylene fan is fitted on top of gas cylinder cabinets to ventilate the cabinet interior. The fan is operated via the rotary switch on the front of the cabinet. Fan ventilation capacity depends on the cabinet volume.
- Gas cylinder cabinets with fans use a special flexible polypropylene duct, matched to the fan outlet diameter, for the exhaust connection.
Specifications
- W × D × H (cm)
- 60–150 × 50 × 190
- Paint finish
- Coated with epoxy electrostatic powder and cured at 200 °C.
- Power rating
-
- 230 Volt
- 50 Hz
- Fan airflow (m³/h)
-
- Optional
- 110 / 300
- Construction
- Galvanised steel sheet
- Internal storage depth (cm)
- 55
