KCO-D 90
90 × 90 × 150 cm
High-Performance Wall-Mounted Fume Hood

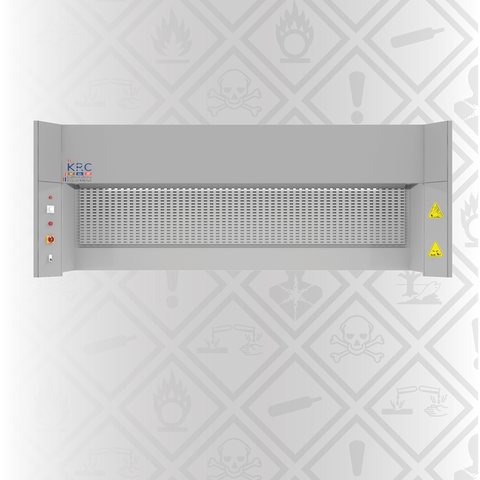

High-Performance Wall-Mounted Fume Hood KCO-D 300
Working with hydrofluoric acid, perchloric acid or hot concentrated mineral acids requires "high-performance" fume hoods
- Width
- 300 cm
- Depth
- 90 cm
- Height
- 150 cm
- Internal width (cm)
- 270
- Internal depth (cm)
- 75
- Interior working height (cm)
- 65
- Working width (cm)
- 300
- Fan airflow (m³/h)
- 1750
- Noise level (dB)
- max. 52
- Stock Code:
- KCO-D 300
- Category:
- Wall-Mounted Fume Hood
- Standards:
- TS EN 14175, EN 14175-3
Features
- Demountable system
- Electro-galvanised sheet steel with epoxy electrostatic paint
- The cabinet is designed to immediately extract and remove contaminants such as acid fumes, heat and process odours that may arise on the worktop during work
- Cabinet lighting is provided by an LED lamp
- Set-ups installed inside the fume hood are not affected by chemical fumes
- Does not create noise pollution during operation
- Ventilation system designed in line with airflow physics
Specifications
- W × D × H (cm)
- 90–300 × 90 × 150
- Paint finish
- After the metal parts have been cleaned in special solvents, they are coated with epoxy electrostatic powder and cured at 200 °C.
- Power rating
-
- 220 Volt
- 50 Hz
- Construction
- DKP - galvanised steel sheet
- Internal working depth (cm)
-
- 50
- 60
- 75
- 90
- 100
