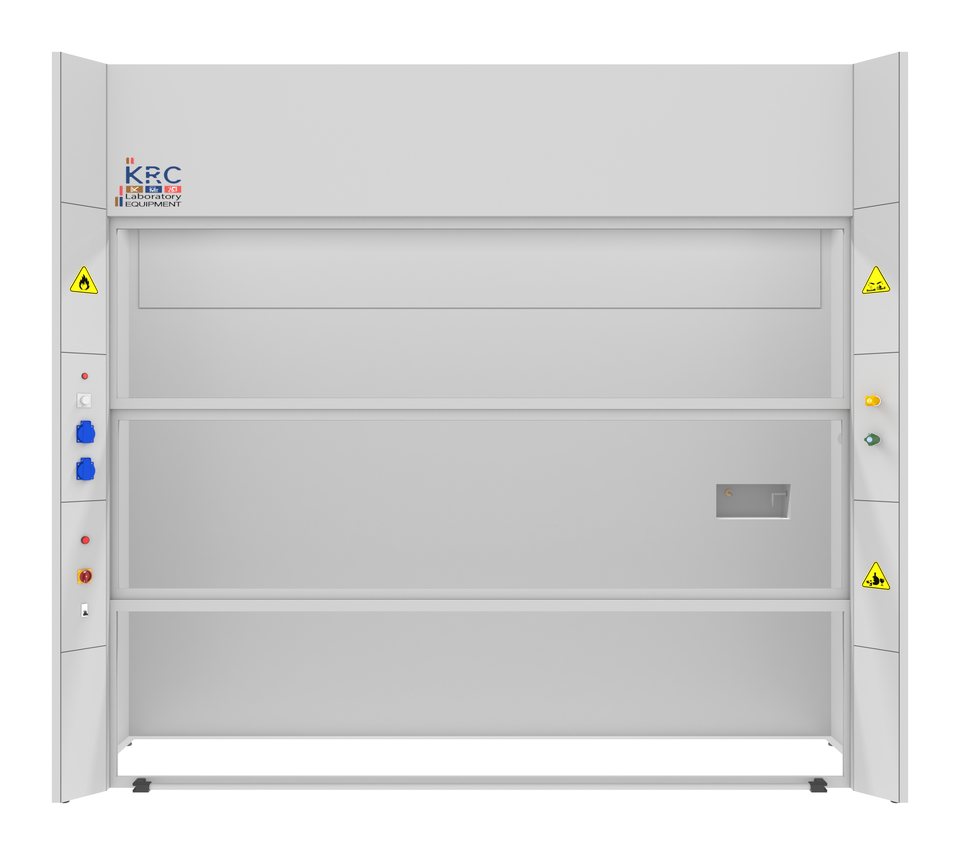

High-Performance Walk-In Fume Hood KW-P 300

Features

• Demountable system
• Electro-galvanised sheet steel with epoxy electrostatic paint
• Vertically opening tempered glass sash
• The cabinet is designed to immediately extract and remove contaminants such as acid fumes, heat and process odours that may arise on the worktop during work
• Cabinet lighting is provided by an LED lamp
• Set-ups installed inside the fume hood are not affected by chemical fumes
• Does not create noise pollution during operation
• Protected against possible flooding
• Framed guillotine-type front sash
• With optional water and gas valve and fitting system inside the cabinet
• Ventilation system designed in line with airflow physics

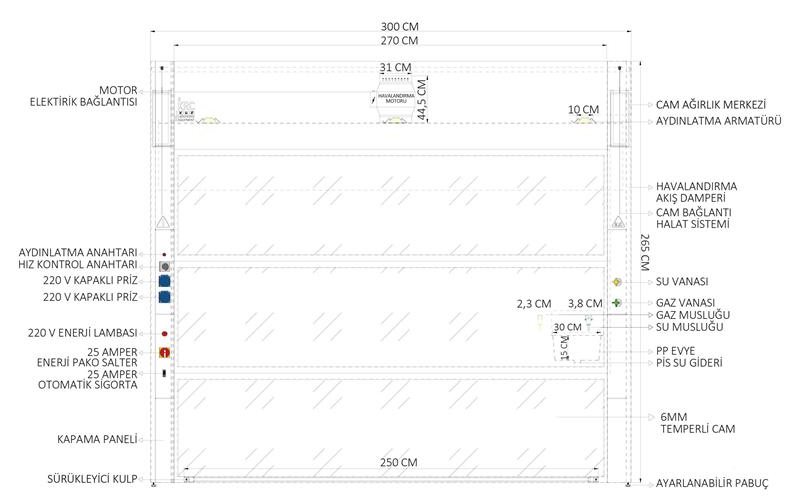

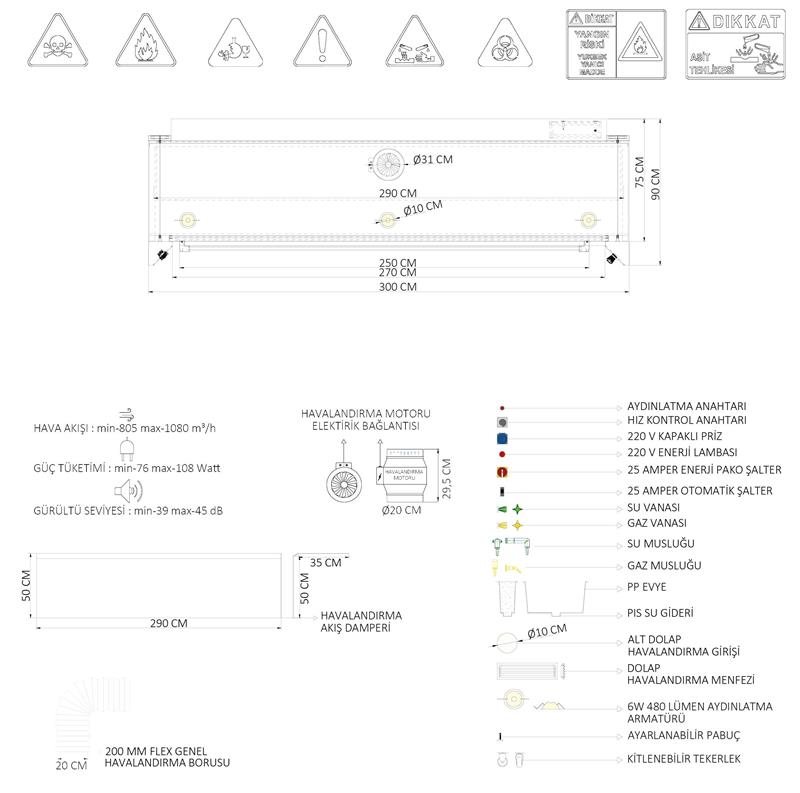

Specifications

W × D × H (cm)

90–300 × 90 × 265

Paint finish

After the metal parts have been cleaned in special solvents, they are coated with epoxy electrostatic powder and cured at 200 °C.

Glass

Tempered safety glass sash opening up and down

Sinks and accessories

• Polypropylene sink
• Epoxy resin sink
• Stainless steel sink
• Industrial ceramic sink; gas control valve with hose-nozzle fitting / water control valve with hose-nozzle fitting, inside and outside the unit, compliant with the laboratory tap standard

Power rating

• 230 Volt
• 50 Hz

Construction

DKP - galvanised steel sheet

Work surface

• Anti-acid compact laminate
• Stainless steel
• Corian
• Industrial ceramic
• Polypropylene
• Sinterflex

Internal working depth (cm)

• 50
• 60
• 75
• 90
• 100

Internal working height (cm)

• 220
• 230
• 240
• 250
• 260
• 270
• 280
• 290
• 300
