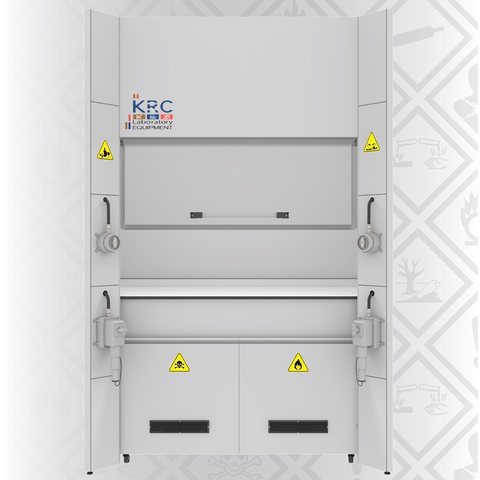

High-Performance Explosion-Proof Fume Hood KCO-EXP 150

Features

• Demountable system
• Electro-galvanised sheet steel with epoxy electrostatic paint
• Vertically opening tempered glass sash
• The cabinet is designed to immediately extract and remove contaminants such as acid fumes, heat and process odours that may arise on the worktop during work
• Cabinet lighting is provided by an LED lamp
• Set-ups installed inside the fume hood are not affected by chemical fumes
• Does not create noise pollution during operation
• Protected against possible flooding
• Framed guillotine-type front sash
• Optional water and gas valve and fitting system inside the cabinet
• Ventilation system designed in line with airflow physics
• The fume hoods are made for experimental work; their base cabinets are ventilated and mobile, and are suitable for storing chemicals.

Specifications

W × D × H (cm)

90–300 × 90 × 225

Base cabinet

• Removable, mobile, ventilated galvanised steel cabinet
• Chemical storage cabinet
• Wooden MDF cabinet

Paint finish

Coated with epoxy electrostatic powder and cured at 200 °C.

Glass

Tempered safety glass sash opening left-right and up-down

Power rating

• 220 Volt
• 50 Hz
• Ex-proof

Construction

DKP - galvanised steel sheet

Bench height (cm)

• 50
• 60
• 70
• 80
• 90
• 100

Work surface

• Anti-acid compact laminate
• Stainless steel
• Corian
• Industrial ceramic
• Polypropylene
• Sinterflex

Internal working depth (cm)

• 50
• 60
• 75
• 90
• 100

Internal working height (cm)

• 60
• 70
• 80
• 90
• 100
• 110
• 120
