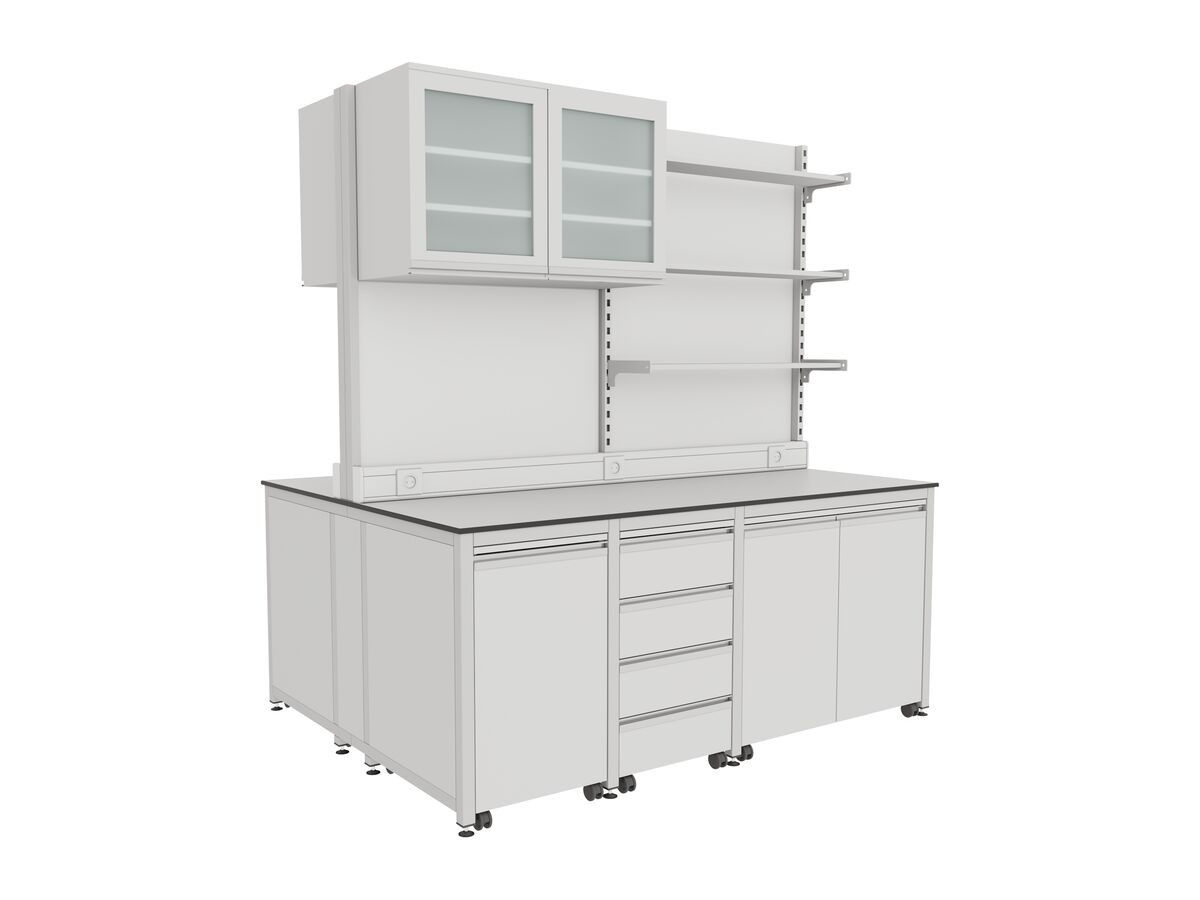

H-Frame Island Bench with Glass-Door Cabinets and Full-Length Shelving KOT-HCDBR200150

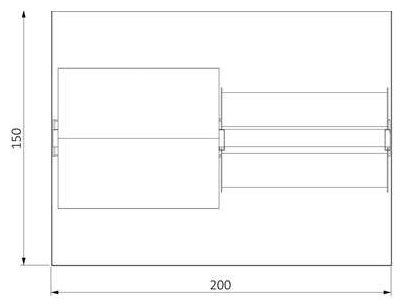

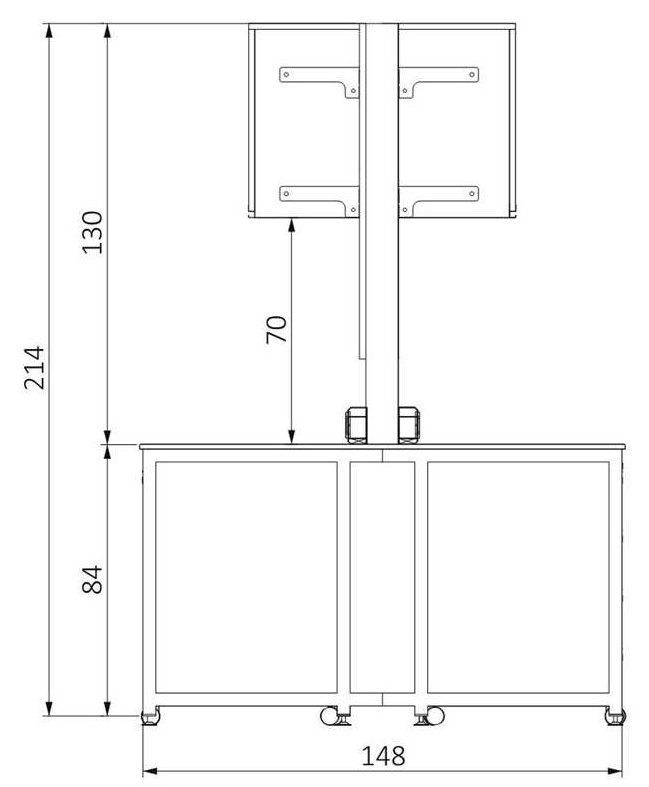

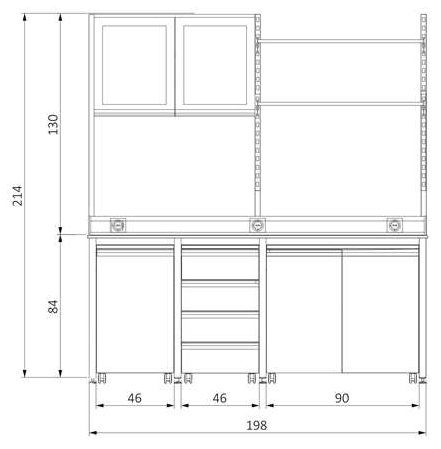

An H-frame steel-framed island bench with a glass-door cabinet on one side and full-height shelving on the other. 198 × 150 cm, worktop height 84 cm, overall height 214 cm with upper units. Base cabinets and drawers are lockable and mobile
- Width
- 198 cm
- Depth
- 150 cm
- Height
- 214 cm
- Height including wall cabinet (cm)
- 214
- Stock Code:
- KOT-HCDBR200150
- Category:
- H-Frame Island Benches
Features
- Laboratory benches are modular and fully demountable.
- The benches can easily be dismantled and relocated whenever required.
- The load-bearing structure is made from standard 40x40x2 mm (height x width x thickness) profile tube.
- Benches used in laboratory installations are 75-90-100 cm high and at least 75-90-150 cm deep.
- The load-bearing frame has a 15–20 cm service void at the rear.
- All steel parts of the bench are coated with epoxy electrostatic paint and oven-cured at 200 °C.
- Cabinet and drawer systems are lockable, removable and mobile.
- Cabinet doors are fitted with standard-compliant hinges that open 90° and resist corrosion and heavy loads; epoxy-coated hinges are used where acid or acid fumes are present.
- Cabinets and drawers are fully laminated with plastic seals and have a self-closing mechanism.
- For smooth movement, cabinets and drawers have a load capacity of at least 35 kg, in compliance with standards.
- All cabinets and drawers are made of 18 mm thick melamine-faced MDF.
Specifications
- W × D × H (cm)
- 198 × 150 × 214
- Worktop height (cm)
- 84
- Overall height incl. upper units (cm)
- 214
- Support frame
- H-frame, 40x40x2 mm profile tube
- Base cabinets
- Mobile, lockable
