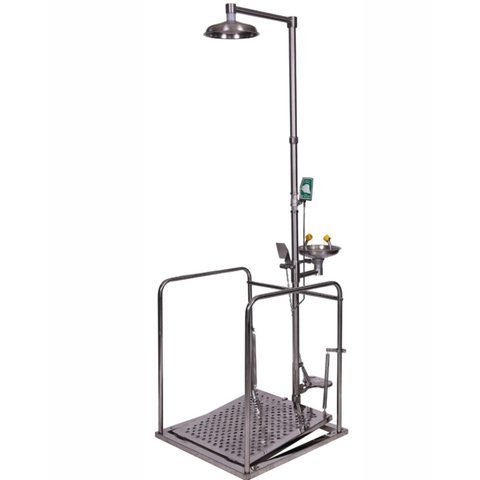

Floor-Standing Combination Emergency Shower with Guard Rail (Platform and Foot-Operated) 15035000

Features

• The body shower starts automatically when the user steps onto the platform; the eye/face wash sits outside the platform and is foot-operated.
• The platform has a guard rail and is fixed to the floor by its base; all pipework is galvanised or stainless steel.
• The bowl can be chosen in stainless steel, painted cold-rolled steel or ABS.
• Galvanised, painted models are green as standard; other colours are available on request.

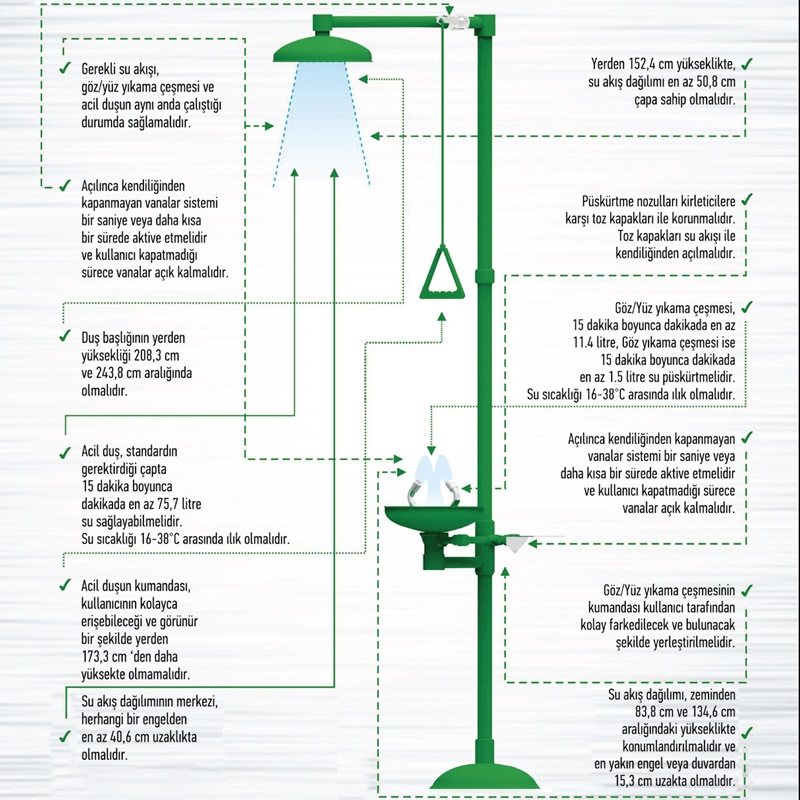

• Under the standards, for 15 minutes the emergency shower must deliver at least 75.7 l/min and the eye/face wash at least 11.4 l/min without interruption; the unit meets this when connected to the mains water supply.
• The standard requires the water to be kept between 16 and 38 °C; a thermostatic mixer that blends hot and cold water to the right temperature can be added to the system.
• Available in explosion-proof (Ex) and non-Ex versions.

Specifications

Water inlet

1″

Shower pipes

1 1/4″

Activation

Body shower: platform; eye wash: hand/foot control

Shower head diameter

300 mm

Water flow (body shower)

At least 75.7 l/min (15 minutes)

Water flow (eye/face wash)

At least 11.4 l/min (15 minutes)
