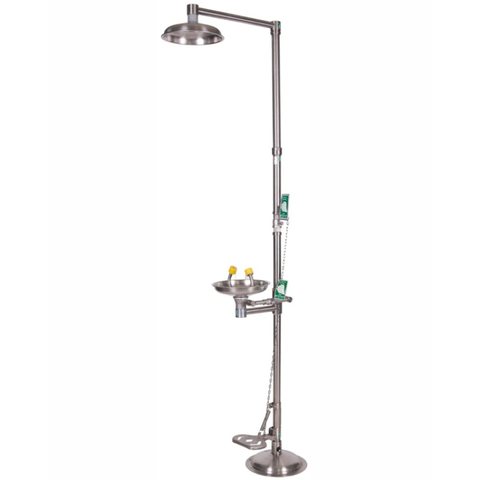

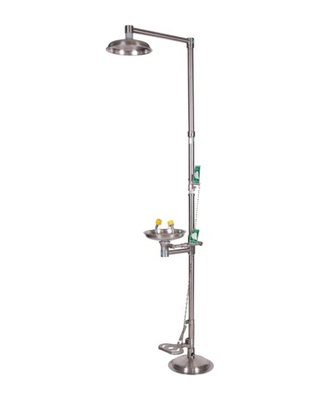

Floor-Standing Combination Emergency Shower (Hand-Operated Eye Wash, Foot-Operated Body Shower)

Features

• The eye/face wash works by hand; the body shower by foot pedal.
• Fixed to the floor by its own base plate.
• All pipework is stainless or galvanised steel.
• The bowl can be chosen in stainless steel, painted cold-rolled steel or ABS.
• Galvanised, painted models are green as standard; other colours are available on request.
• Under the standards, for 15 minutes the emergency shower must deliver at least 75.7 l/min and the eye/face wash at least 11.4 l/min without interruption; the unit meets this when connected to the mains water supply.
• The standard requires the water to be kept between 16 and 38 °C; a thermostatic mixer that blends hot and cold water to the right temperature can be added to the system.
• Available in explosion-proof (Ex) and non-Ex versions.

Specifications

Water inlet

1″

Body pipe

1 1/4″

Activation

Eye wash: hand control; body shower: foot pedal

Shower head diameter

300 mm

Water flow (body shower)

At least 75.7 l/min (15 minutes)

Water flow (eye/face wash)

At least 11.4 l/min (15 minutes)
