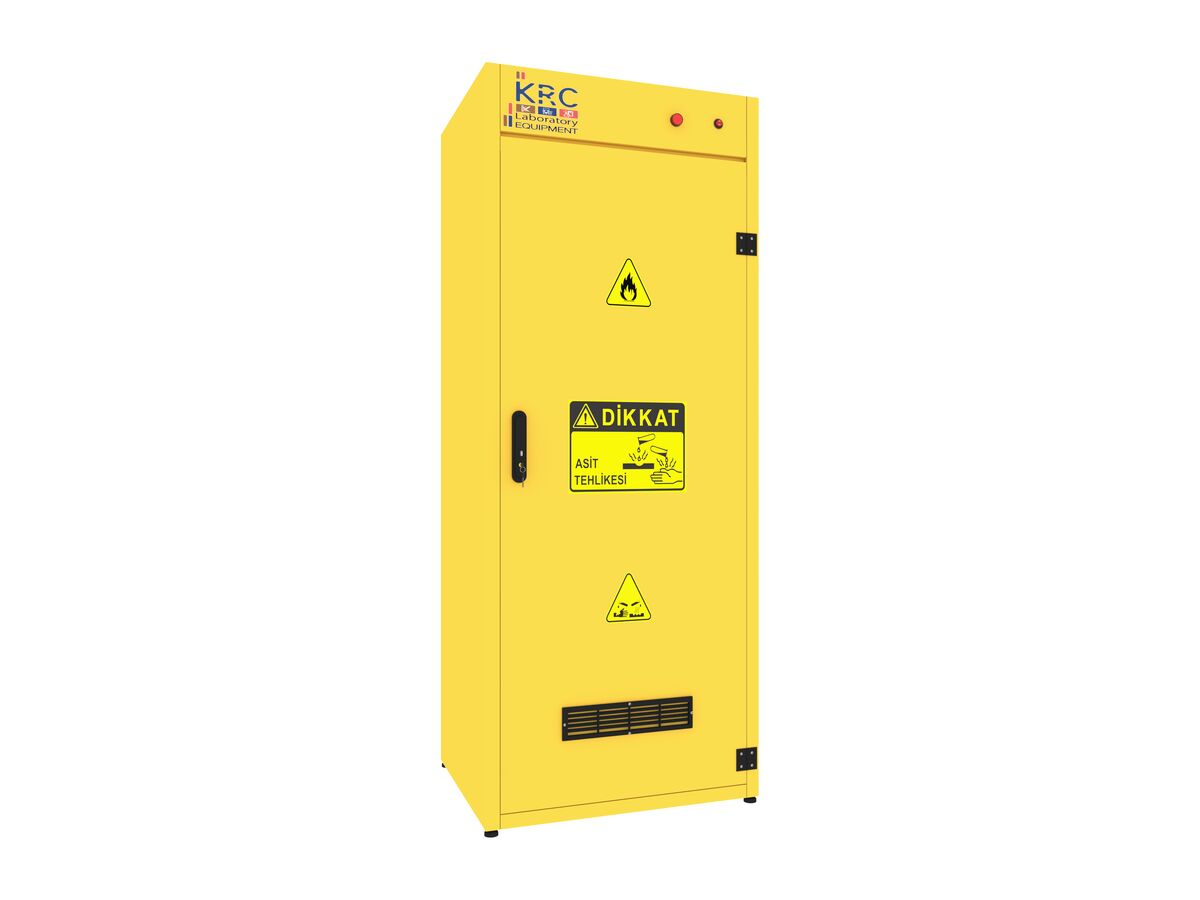

Fire-Resistant Single-Door Safety Storage Cabinet YDD-T 6019

Features

• Demountable system
• Main body: steel with electrostatic epoxy powder coating after pre-treatment
• Interior: steel with electrostatic epoxy powder coating after pre-treatment.
• 100 mm ventilation outlet for connecting the cabinet’s internal ventilation.
• Leak-tight seal system, leak-tight shelf system on telescopic runners, optional acrylic glass front panel
• Fire-resistant
• Lockable door system marked in accordance with ISO 3864, colour RAL 7035 (light grey) or RAL 1004 (yellow). Plays an important role in work with chemicals and in microbiological laboratories.
• Correct storage and handling of chemicals greatly reduces chemical risk.
• Storage standards require fire control, temperature, ventilation, segregation and labelling to be specified.
• Minimises the flammability, toxicity and environmental pollution risks of each chemical when storing hazardous chemicals.
• Chemical storage safety cabinets provide an effective solution for working with hazardous chemicals in laboratories and workshops.

Specifications

W × D × H (cm)

60 × 45 × 160–220

Paint properties

After the metal parts have been cleaned in special solvents, they are coated with epoxy electrostatic powder and cured at 200 °C.

Cabinet feet

Chemical-resistant screw feet that compensate for floor slopes

Cabinet depth (cm)

45

Cabinet width (cm)

60

Fan airflow (m³/h)

110 / 300

Noise level

20 / 40 dB

Power rating

220 Volt / 50 Hz

Construction

Double-walled galvanised steel sheet

Standard and quality certificate

ISO 12100 - EN 953+A1 CLASS I / CE / ISO 9001:2015 / TS EN 14175

Top control panel

Illuminated on-off switch – power pilot lamp
