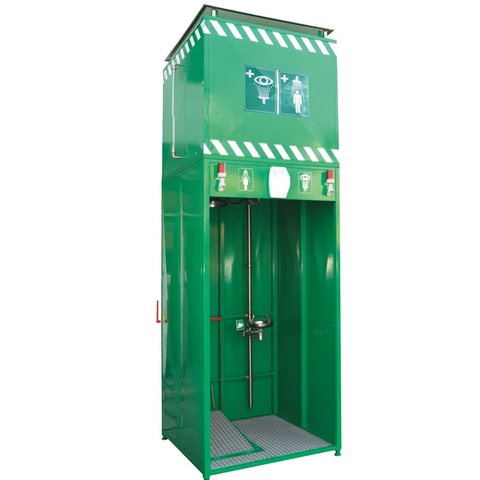

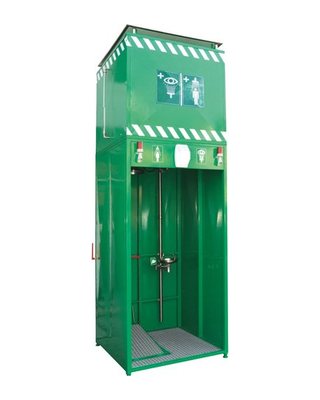

Emergency Eye Wash and Body Shower Booth with Overhead Tank (630/1260 L) ESW-OWT-1260

Features

• Connected to the mains, it delivers the steady 15-minute flow the standard requires.
• Can be made in galvanised and painted steel, stainless steel or GRP; galvanised, painted models come in green, yellow or white.
• The water tank can be insulated.
• To keep the water between 15 and 38 °C, an Ex or non-Ex immersion heater or chiller can be added, sized to the requirement.
• Options: audible and visual alarm, scald/freeze protection valve, test handle, foot-operated eye wash, ABS bowl, AISI 316 stainless shower parts, sunshade over the tank, low water level switch, side and rear panels with insulation, spring-loaded doors, water level and temperature gauges, high/low temperature alarm, drain pit and grating, internal or external lighting, shower activation platform, panic bar activation, Ex interior heating, flow switch, pressure regulator, hot and cold water mixing valve, stainless steel lifting eyes.
• The eye wash can be placed inside or outside the booth, on the right or the left.

Specifications

Tank capacity

630 l or 1260 l

Body shower head diameter

300 mm

Eye wash bowl diameter

300 mm

Water inlet

1 1/2″ flanged

Water outlet

1 1/4″

Water flow (body shower)

At least 75.7 l/min (15 minutes)

Water flow (eye/face wash)

At least 11.4 l/min (15 minutes)
