KSD 9016
90 × 45 × 160 cm
Double-Walled Double-Door Chemical Storage Cabinet
Double-Walled Double-Door Chemical Storage Cabinet KSD 12019
Chemicals and solvents in the laboratory release toxic gases over time, even in closed containers. Laboratory standards and occupational safety require such chemicals to be stored in special cabinets
- Width
- 120 cm
- Depth
- 45 cm
- Height
- 190 cm
- Cabinet width (cm)
- 120
- Cabinet height (cm)
- 190
- Number of shelves
- 4
- Stock Code:
- KSD 12019
- Standards:
- EN 14727, ISO 3864, CE, TS EN 14175, ISO 12100, EN 953
Features
- Demountable system
- Main body: steel with electrostatic epoxy powder coating after pre-treatment
- Interior: steel with electrostatic epoxy powder coating after pre-treatment.

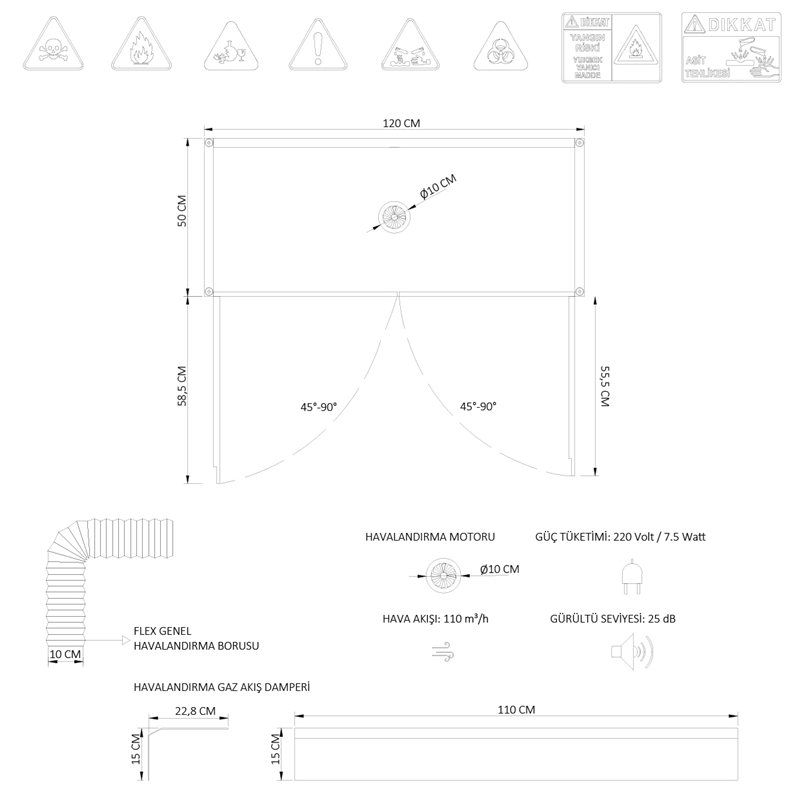

- 100 mm ventilation outlet for connecting the cabinet’s internal ventilation.

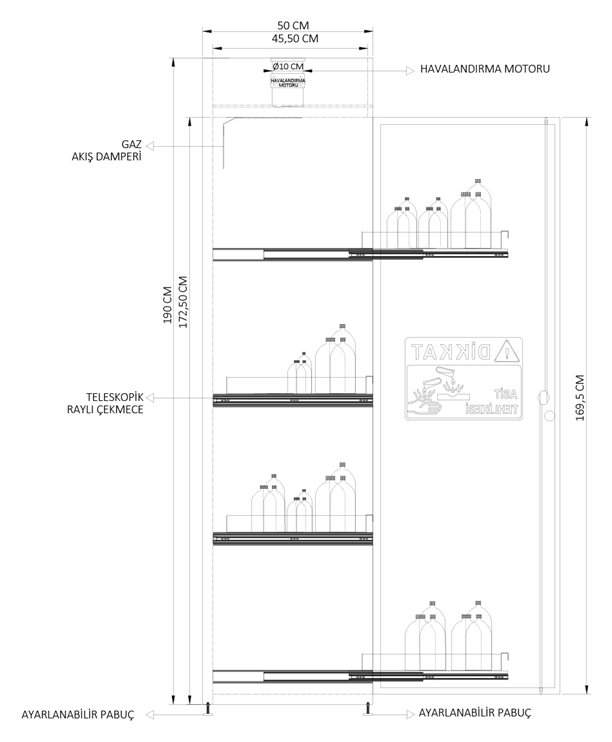

- Leak-tight seal system, leak-tight shelf system on telescopic runners, optional tempered glass front panel
- Lockable door system marked in accordance with ISO 3864, colour RAL 7035 (light grey) or RAL 1004 (yellow). Plays an important role in work with chemicals and in microbiological laboratories.
- Correct storage and handling of chemicals greatly reduces chemical risk.
- Storage standards require fire control, temperature, ventilation, segregation and labelling to be specified.
- Minimises the flammability, toxicity and environmental pollution risks of each chemical when storing hazardous chemicals.
- Chemical storage safety cabinets provide an effective solution for working with hazardous chemicals in laboratories and workshops.
Specifications
- W × D × H (cm)
- 90–120 × 45 × 160–220
- Paint properties
- After the metal parts have been cleaned in special solvents, they are coated with epoxy electrostatic powder and cured at 200 °C.
- Cabinet feet
- Chemical-resistant screw feet that compensate for floor slopes
- Cabinet depth (cm)
- 45
- Fan airflow (m³/h)
- 110 / 300
- Noise level
- 20 / 40 dB
- Power rating
- 220 Volt / 50 Hz
- Construction
- Double-walled galvanised steel sheet
- Standard and quality certificate
- ISO 12100 - EN 953+A1 CLASS I / CE / ISO 9001:2015 / TS EN 14175

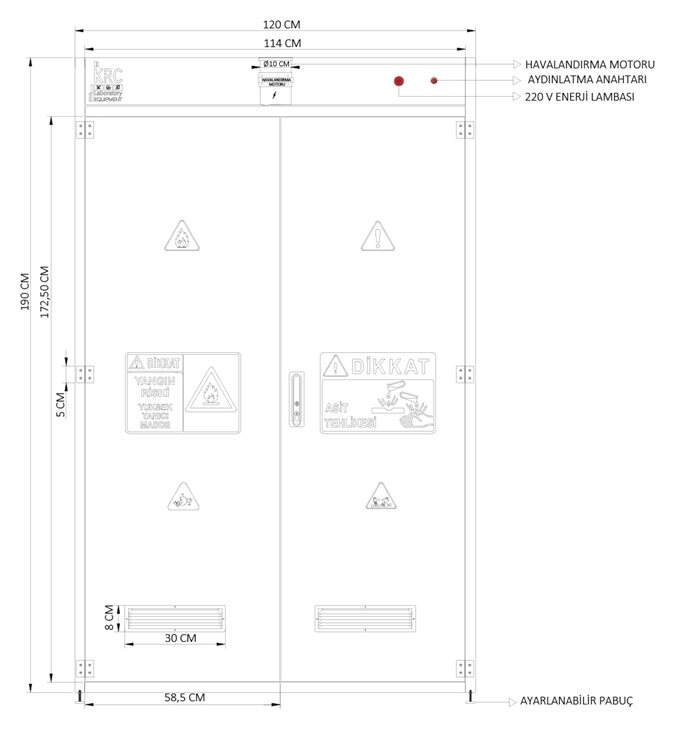

- Top control panel
- Illuminated on-off switch – power pilot lamp
