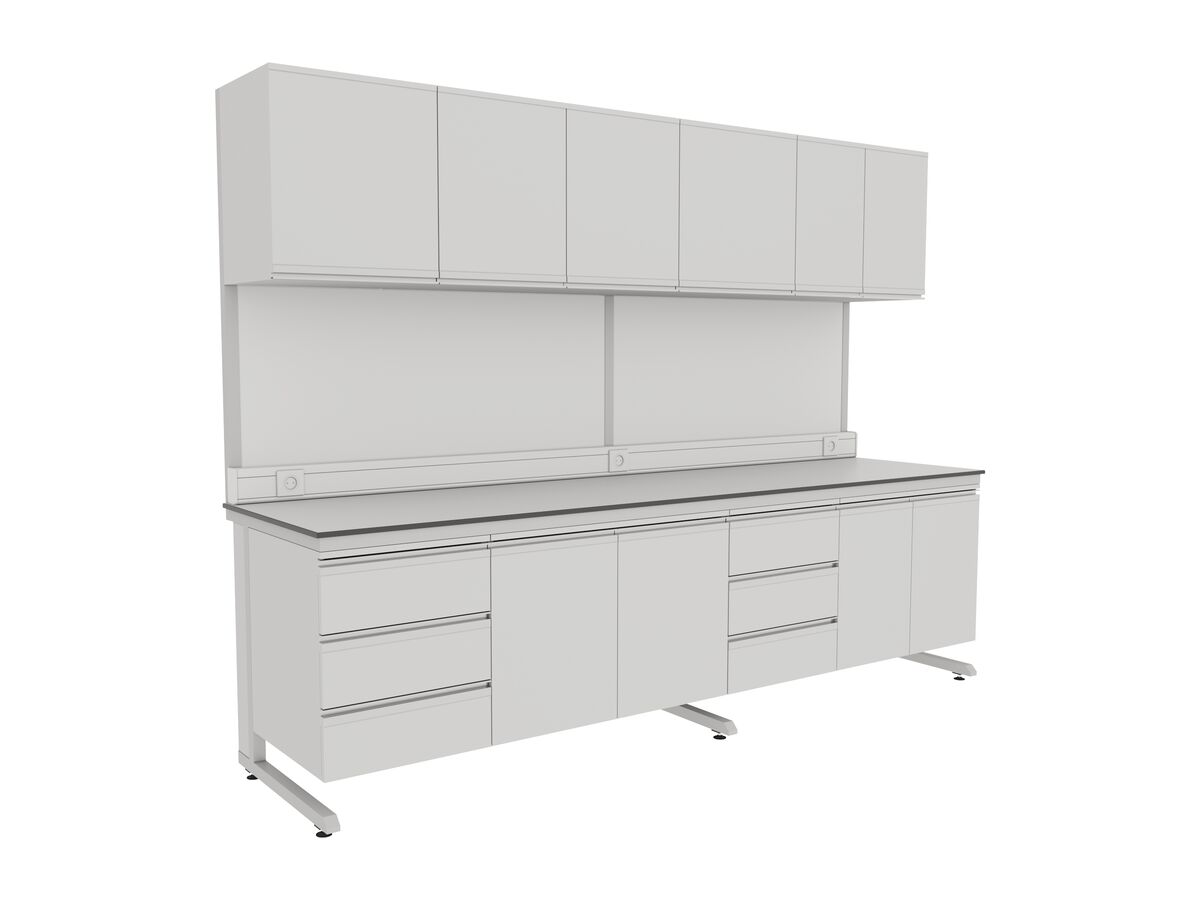

C-Frame Wall Bench with Upper Door Cabinets KLT-CUKD28075

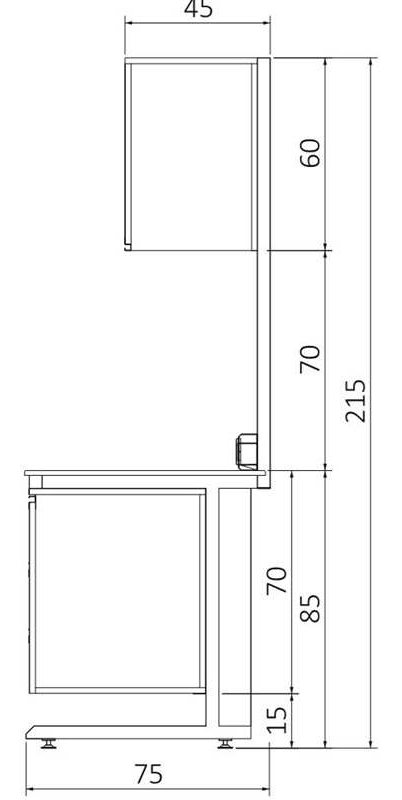

A C-frame steel-framed wall bench with upper door cabinets. 280 × 75 cm, worktop height 85 cm, overall height 215 cm with upper units. Base cabinets are suspended from the frame
- Width
- 280 cm
- Depth
- 75 cm
- Height
- 215 cm
- Stock Code:
- KLT-CUKD28075
- Category:
- C-Frame Wall Benches
Features
- Laboratory benches are modular and fully demountable.
- The benches can easily be dismantled and relocated whenever required.
- The load-bearing structure is made from standard 40x60x2 mm (height x width x thickness) profile tube.
- Benches used in laboratory installations are 75-90-100 cm high and at least 75-90-150 cm deep.
- The load-bearing frame has a 15–20 cm service void at the rear.
- All steel parts of the bench are coated with epoxy electrostatic paint and oven-cured at 200 °C.
- Cabinet doors are fitted with standard-compliant hinges that open 90° and resist corrosion and heavy loads; epoxy-coated hinges are used where acid or acid fumes are present.
- Cabinets and drawers are fully laminated with plastic seals and have a self-closing mechanism.
- For smooth movement, cabinets and drawers have a load capacity of at least 35 kg, in compliance with standards.
- All cabinets and drawers are made of 18 mm thick melamine-faced MDF.
Specifications
- W × D × H (cm)
- 280 × 75 × 215
- Worktop height (cm)
- 85
- Overall height incl. upper units (cm)
- 215
- Support frame
- C-frame, 40x60x2 mm profile tube
- Base cabinets
- Suspended, fixed
