Safe-Deposit Lockers

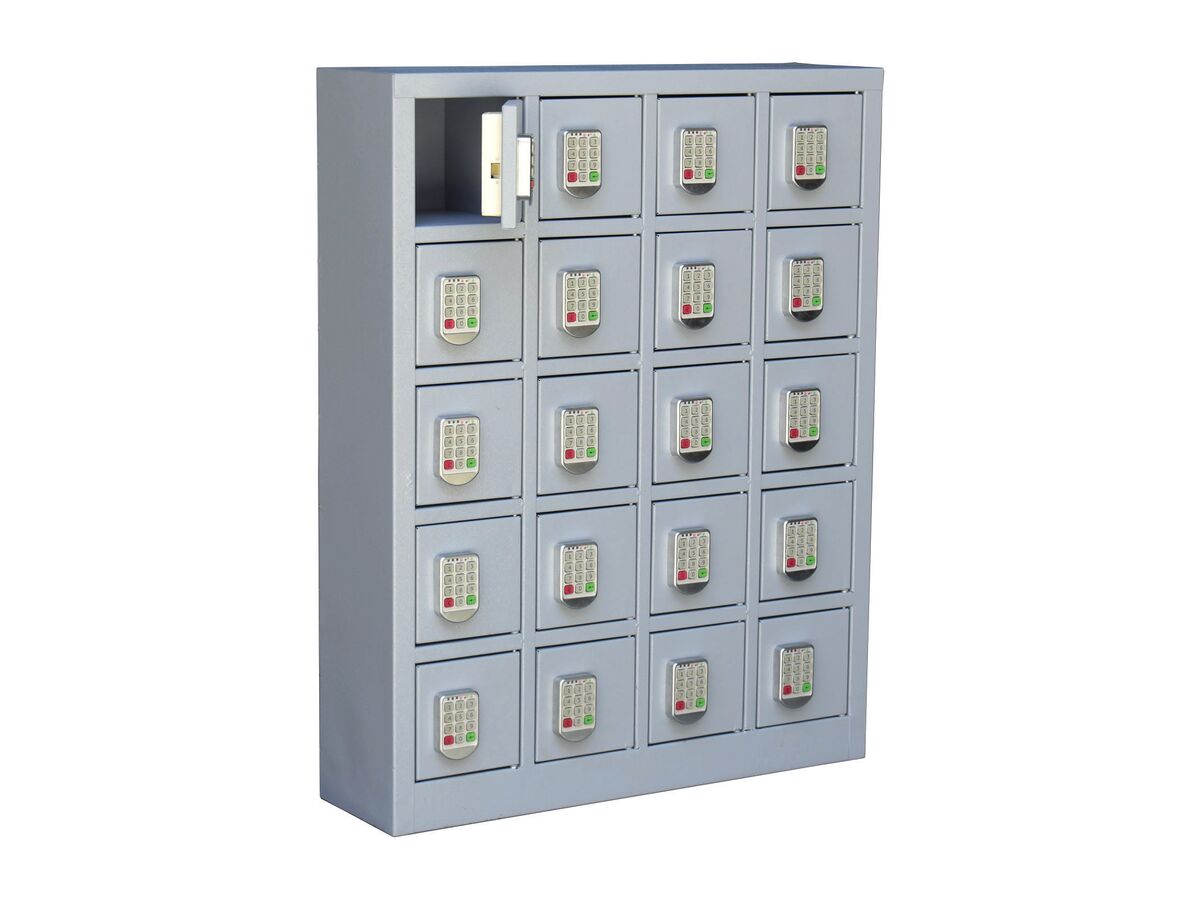

20-Door Safe-Deposit Locker with Electronic Code Locks 725 × 215 × 890 mm

Wall-mounted, 20-compartment safe-deposit locker with electronic keypad locks; 0.80 mm sheet-steel body, 725 × 215 × 890 mm

Width
72.5 cm
Depth
21.5 cm
Height
89 cm

Features

  • Entire body made of first-quality zamak.
  • Resistant to dust, moisture and impact.
  • Locking and unlocking is done simply by entering the code, with no need to turn or press anything.
  • A different code each time (public mode) or a fixed code (private mode) can be used.
  • If the battery runs out while locked, a power supply can be connected to provide temporary power. (1 is supplied with the product.)
  • For security, the lock is disabled for 5 minutes after 3 consecutive incorrect codes are entered.
  • If the code is forgotten, the locks can be opened with a master code set by authorised persons.
  • Runs on DC6V – 4 AAA alkaline batteries. Average battery life is 12 months. (10000 operations)
  • Static current 10µA
  • Dynamic current 220mA
  • Alarm power: 4.7V
  • Operating temperature -15~65°C
  • Operating humidity 5%~95% RH (non-condensing)
  • Air discharge 15KV, contact discharge 8KV

Specifications

W × D × H (mm)
725 × 215 × 890
Compartment size
H150xW150xD200 mm (compartment size)
Material / sheet
Manufactured from 0.80 mm sheet steel.
Paint
Finished with electrostatic powder coating.
Hinge
Concealed spring-loaded pivot hinges are used.
Installation
Can easily be wall-mounted.
Fixings
Screws and wall plugs for wall mounting are included.
Weight
Total weight 55.00 kg
